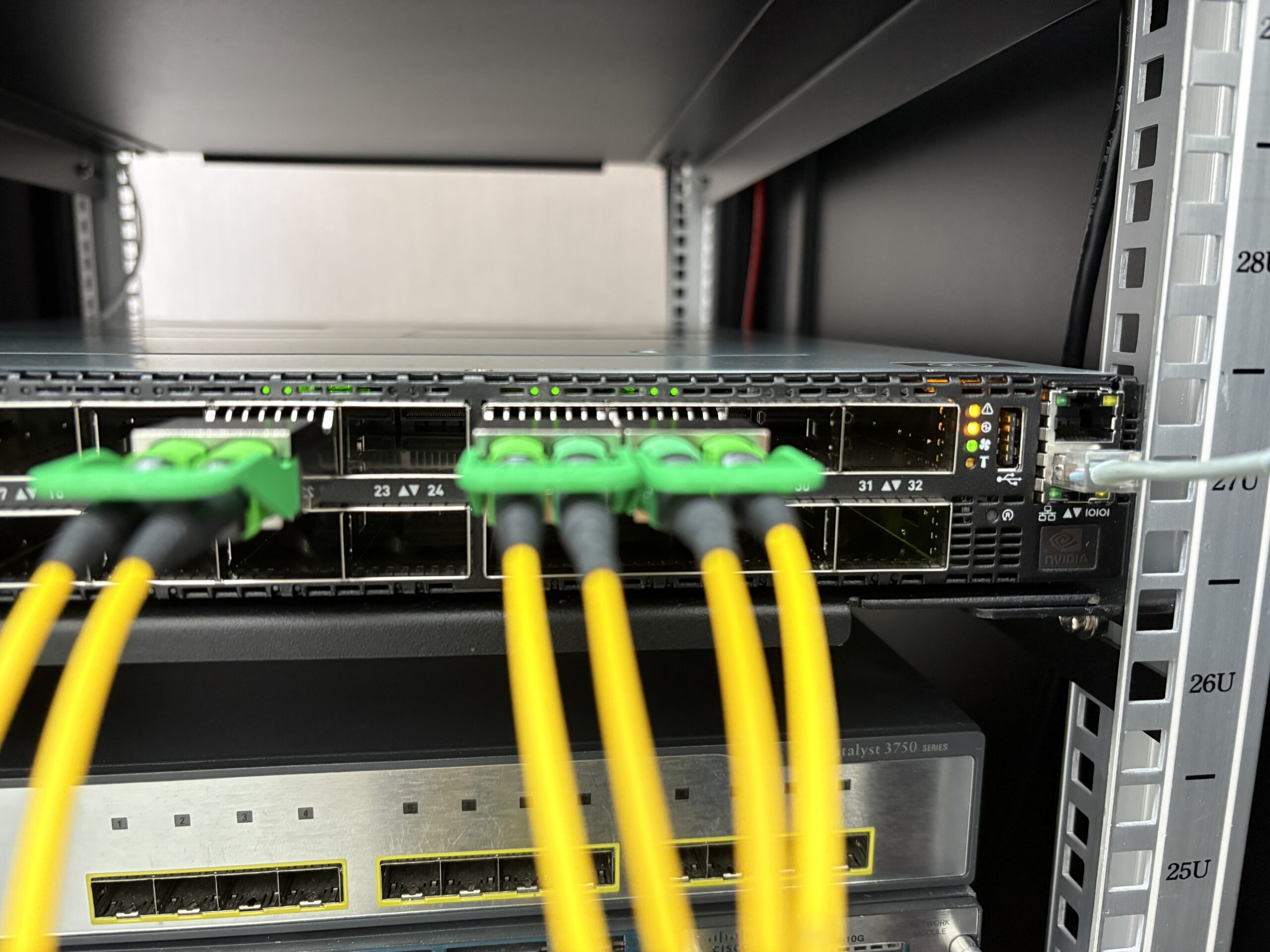

NVIDIA Quantum-2 QM9700 switch
To meet the growing demands of AI, HPC, and data center networking, Optech, professional optical transceiver and cable manufacturer, has enhanced its in-house testing infrastructure with the addition of the NVIDIA Quantum-2 QM9700 InfiniBand switch. This upgrade significantly improves the reliability assurance of Optech’s 800G/400G/200G optical modules, AOC, and DAC products before shipment.
Why the NVIDIA QM9700 Matters
The QM9700 switch is part of NVIDIA’s latest Quantum-2 InfiniBand architecture, supporting ultra-low latency and up to 400Gbps per port. By integrating this switch into its test bench, Optech can now perform real-time compatibility validation, stress testing, and performance benchmarking that aligns with the most demanding customer requirements — especially for:
- AI Training Clusters
- Cloud Data Centers
- HPC and RoCE/NDR Applications
Testing Scope and Coverage
With the NVIDIA Quantum-2 QM9700 switch, Optech’s validation now includes:
- 800G QSFP-DD AOC and DAC
- 400G SR4, DR4, FR4 Optical Modules
- 200G QSFP56 DAC and Optical Transceivers
- Full NDR and HDR compatibility testing
- Interoperability with NVIDIA CX7, Broadcom, Intel NICs
- Pre-shipment burn-in and performance logs
400G OSFP Transceivers Nvidia Compatible
- 400G OSFP SR4 Nvidia MMA4Z00-NS400 Compatible
The 400G OSFP SR4 transceiver supports connections over multi mode fiber (MMF) up to 50m. It uses single MPO-12/APC optical connector. The wavelengths is 850nm.
The Nvidia MMA4Z00-NS400 compatible was tested on NVIDIA Quantum-2 QM9700 switch.
To know more about the Nvidia MMA4Z00-NS400 compatible transceiver click here.
- 400G OSFP DR4 Nvidia MMS4X00-NS400 Compatible
The 400G OSFP DR4 transceiver supports connections over single mode fiber (SMF) up to 100m. It uses single MPO-12/APC optical connector. The wavelengths is 1310nm.
The Nvidia MMS4X00-NS400 compatible was tested on NVIDIA Quantum-2 QM9700 switch.
To know more about the Nvidia MMS4X00-NS400 compatible transceiver click here.
800G OSFP Transceivers Nvidia Compatible
- 800G OSFP SR8 Nvidia MMA4Z00-NS Compatible
The 800G OSFP SR8 transceiver supports connections over multimode fiber (MMF) up to 50m with OM3 and 100m with OM4. It uses two MPO-12/APC optical connectors. The wavelengths is 850nm.
The Nvidia MMA4Z00-NS compatible was tested on NVIDIA Quantum-2 QM9700 switch.
To know more about the Nvidia MMA4Z00-NS compatible transceiver click here.
- 800G OSFP DR8 Nvidia MMS4X00-NM Compatible
The 800G OSFP DR8 transceiver supports connections over single mode fiber (SMF) up to 500m. It uses MPO-12/APC optical connectors. The wavelengths is 1310nm.
The Nvidia MMS4X00-NM compatible was tested on NVIDIA Quantum-2 QM9700 switch.
To know more about the Nvidia MMS4X00-NM compatible transceiver click here.
- 800G OSFP 2xFR4 Nvidia MMS4X50-NM Compatible
The 800G OSFP 2xFR4 transceiver supports connections over single mode fiber (SMF) up to 2km. It uses two Duplex LC optical connectors. The wavelengths is 1310nm.
The Nvidia MMS4X50-NM compatible was tested on NVIDIA Quantum-2 QM9700 switch.
To know more about the Nvidia MMS4X50-NM compatible transceiver click here.
Ordering Information
| Optech Part Number | Nvidia Part Number | Features |
| OPOY-MT5-85-CB | MMA4Z00-NS400 | 400Gb/s OSFP SR4 multimode mode, MPO, 850nm, up to 50m |
| OPOY-SX5-13-CBS | MMS4X00-NS400 | 400Gb/s OSFP DR4 single mode mode, MPO, 1310nm, up to 100m |
| OPQM-MT5-85-CBO | MMA4Z00-NS | 800Gb/s OSFP SR8 multimode, 2xMPO, 850nm, up to 50m |
| OPQM-SX1-13-CBO | MMS4X00-NM | 800Gb/s OSFP DR8 single mode, MPO, 1310nm, up to 100m |
| OPOM-S02-13-CB2 | MMS4X50-NM | 800Gb/s OSFP 2xFR4 single mode, LC, 1310nm, up to 2km |
For additional information about the Nvidia QM9790 Switch 400G/800G compatible transceivers, or price inquiry, please contact us at sales@optech.com.tw
About Optech
Optech Technology Co. Ltd was founded in 2001 in Taipei, Taiwan. The company was created with a sole purpose, to provide a wide and high quality portfolio of optical products to a very demanding and fast evolving market.
To respond to the permanent increase of IP traffic, Optech portfolio is constantly growing. Since the beginning, the company has always been up to date with the latest innovations on the market. Today, we are proud to deliver a large selection of 25G SFP28, 40G QSFP+, 100G QSFP28, 200G QSFP56, 400G QSFP-DD, 800G QSFP-DD and OSFP optical transceivers and cables.
Optech has a large portfolio of products which include optical transceivers, direct attach cables, active optical cables, loopback transceivers, media converters and fiber patch cords.
Through its large selection of optical products, that have a range of data speed from 155 Mbps to 800 Gbps and reach distances up to 120km, Optech products are suitable for various industries such as telecom, data centers as well as public and private networks.
