400G QSFP-DD and OSFP Transceivers: Key Variants and Applications
As cloud-scale networks evolve, 400G transceivers have become a critical component in hyperscale data centers, AI clusters, and metro DCI links. This article provides a detailed comparison of 400G QSFP-DD and 400G OSFP modules, including SR8, DR4, DR4+, LR4, and explains their optimal use cases.
QSFP-DD vs OSFP: Understanding the Form Factors
| Feature | QSFP-DD | OSFP |
|---|---|---|
| Size | Compact (Hot-swappable) | Larger (Higher thermal tolerance) |
| Power Dissipation | Up to 12W | Up to 16W |
| Use Case | Broad switch compatibility | AI/ML intensive computing nodes |
| Interface Pins | 76 | 60 |
- QSFP-DD (Quad Small Form Factor Pluggable – Double Density): Widely used in Ethernet switches.
- OSFP (Octal Small Form Factor Pluggable): Preferred for NVIDIA AI/ML systems due to better cooling and power handling.
Key Variants of 400G Transceivers
1. 400G QSFP-DD SR8
- Standard: IEEE 802.3ck
- Interface: 8x50G PAM4 on MMF
- Reach: ≤100m over OM4
- Application: Intra-rack or short-reach interconnects
- Connector: MPO-16 or 2x MPO-12
- Power Budget: Low
2. 400G QSFP-DD DR4 / OSFP DR4
- Standard: 400GBASE-DR4 (IEEE)
- Interface: 4x100G PAM4
- Reach: 500m over SMF
- Connector: MPO-12
- Use Case: TOR to spine; leaf-to-leaf over single mode fiber

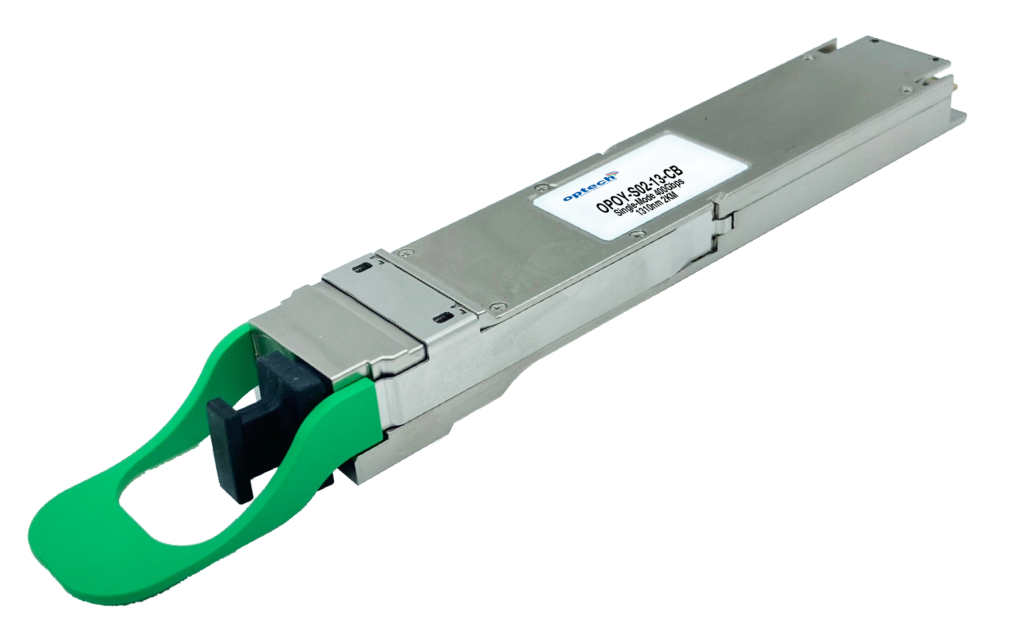

3. 400G QSFP-DD DR4+ / OSFP DR4+
- Enhanced Reach: 2km over SMF
- Same Electrical Interface as DR4
- Connector: MPO-12
- Application: Inter-building links or extended leaf-spine networks
4. 400G QSFP-DD LR4 / OSFP LR4
- Standard: 400GBASE-LR4 (4x100G CWDM)
- Modulation: PAM4
- Reach: 10km over duplex LC SMF
- Application: Metro DCI, long-haul links
Use Case Scenarios for 400G Modules
| Application Area | Recommended Module | Notes |
|---|---|---|
| Intra-Data Center (≤100m) | QSFP-DD SR8 / OSFP SR8 | Lowest latency, MMF |
| Leaf-Spine (≤500m) | QSFP-DD DR4 / OSFP DR4 | MPO-12 SMF |
| Metro DCI (≤2km) | DR4+ / LR4 | Tunable versions available |
| Long-Haul (10km) | LR4 | CWDM and FEC required |
Compatibility with AI & Hyperscale Networks
NVIDIA and Arista switches widely support both QSFP-DD and OSFP:
- NVIDIA Quantum-2 SN5600: Supports OSFP DR4/SR8
- NVIDIA CX7 NIC (Q112-400G-SR4): For SR4-based backbone
- Arista 7060X5 / 7060X6: Support both QSFP-DD SR8 and DR4
Conclusion
The selection of a 400G transceiver—whether QSFP-DD SR8, OSFP DR4, or LR4—depends on your use case, fiber infrastructure, and desired reach. High-performance networks require precision in both form factor and optical interface, especially when deployed in RoCE, AI/ML clusters, or metro DCI.
If you’re designing your next high-speed network or upgrading your interconnects, understanding these options will ensure optimal performance and future-proof scalability.
